Open science approaches to the mathematical modeling of infectious disease

Simon Frost

Principal Data Scientist, Microsoft &

Professor of Pathogen Dynamics, LSHTM

sdwfrost@microsoft.com @sdwfrost http://github.com/sdwfrost

Introduction

Three parts:
- Models: making models easier to understand and modify
- Code: making models easier to run
- Platforms: empowering models with compute and data
An open science approach can help with all the above

Modeling applications

We want to be able to use our Premonition platform to feed sensor data into models
We’d also like to learn from models e.g. for decision support
We’re also a small team, and can’t make models all the time
We need to use ‘third party’ models for our projects
- West Nile Virus in Harris County, Texas
- Malaria in Tanzania
- Lymphatic filariasis in Nepal
- River blindness in Nigeria
- Lassa fever in Nigeria
Complex, climate-sensitive models

Issues with using models

They may not consider the compartments you need or the data you have
They may be difficult to understand
The written description may be incomplete
The code, if available, may be difficult to install
Each model takes different inputs and outputs

FAIR principles of open science

Findable, Accessible, Interoperable, Reproducible
Models often do not adhere to FAIR principles
I’ll discuss how we might go about changing this
Associated scientific benefits beyond openness

Formulating models

The way we formulate models can make it easier for others to build upon
A compatible modeling approach
The ability to comprehend the model
The ability to extend the model
- The states considered in the model
- The method used for inference

Processes, not states

Our primary focus in compartmental models is the compartments rather than the transitions
By modeling the transitions, we can easily shift between ODEs, SDEs, and jump processes
- Reaction networks in chemistry
- Petri nets

Stochastic petri net

\[ \begin{array}{lllll} \rm{Transition} & \Delta I & \rm{Rate} \cr \hline S + I \rightarrow I+I & +1 & \lambda I \cr I \rightarrow R & -1 & \mu I \cr \end{array} \]

Transitions: orange squares
States: blue circles

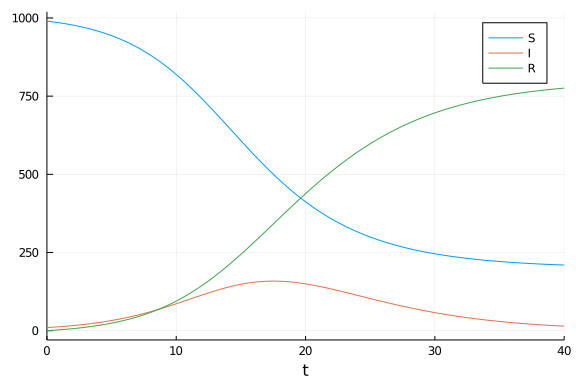

ODEs and jump processes

With the model formulated as transitions, we can easily convert into ODEs, SDEs, and jump processes
Example can be found here

ODE

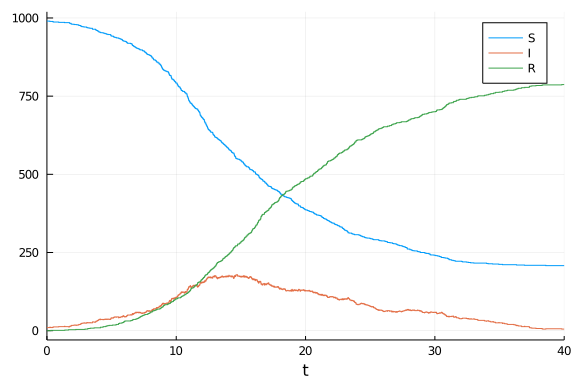

Jump process

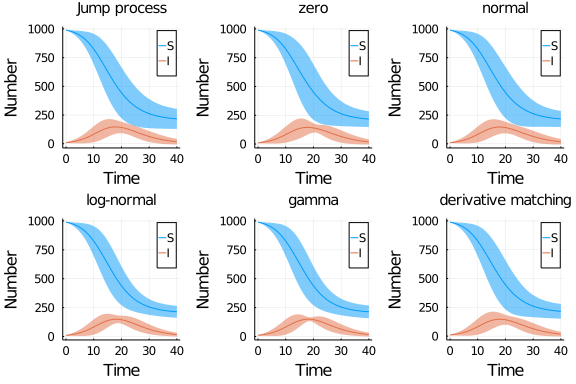

Moment closure

Another benefit is to automate moment closure
Code is here

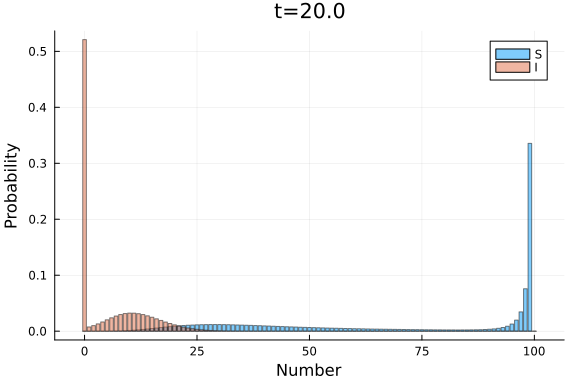

Finite state projection of the master equation

Code is here

Retrofitting models with phylodynamics

To be able to incorporate phylogenetics into our models, we need to:
- Take a process based approach
- Divide processes into:
  - Birth
  - Death
  - Migration
  - Sampling

Expanding the state space

Can make non-Markovian models easier to simulate
Can more closely link models with observables
- We don’t directly observe the contact network or the transmission network

State expansion in phylodynamic models

Number of lineages over time
Clustering statistics
Tree shape statistics
Parsimonious counts of migrations in structured models

Counting infections

Counting reinfections in SIS models
- Can account for high reinfection vs. first infection in gonorrhoea
Counting infectees to capture ‘superspreaders’

\[ \begin{align} \frac{dS}{dt} & = -\beta S \Sigma_i I_i\cr \frac{dI_1}{dt} & = \beta S \Sigma_i I_i - \gamma I_1 - \beta S I_1\cr \frac{dI_i}{dt} & = \beta S I_{i-1} - \gamma I_i - \beta S I_i\cr \frac{dI_N}{dt} & = \beta S I_{N-1} - \gamma I_N\cr \end{align} \]

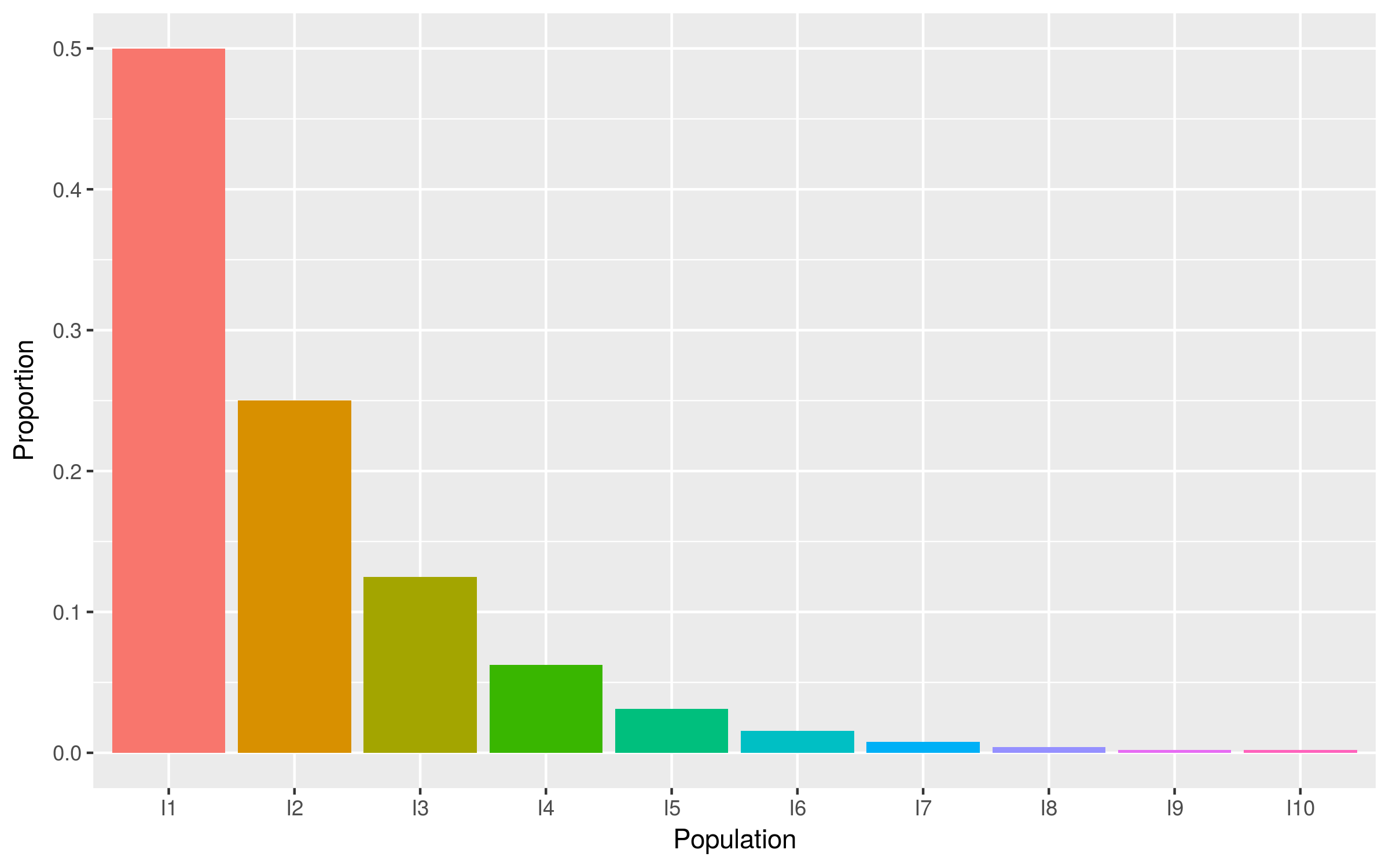

Degree distribution is geometric

Half of individuals at any one time have not (yet) infected anyone

Dealing with increased complexity

An argument against increasing the state space is the increased complexity of the models
- Easier to make mistakes, which may go unnoticed by someone using the model
- Harder to understand, and hence to re-use
Possible remedies
- Use domain specific languages (DSLs)
- Exploit composability

Using DSLs

R
- odin

deriv(S) <- -beta*S*I
deriv(I) <- beta*S*I - gamma*I
deriv(R) <- gamma*I
initial(S) <- 0.99
initial(I) <- 0.01
initial(R) <- 0.00
beta <- 0.5
gamma <- 0.25

Julia
- ModelingToolkit.jl

@parameters t β γ
@variables S(t) I(t)
D = Differential(t)
eqs = [D(S) ~ -β*S*I,
       D(I) ~ β*S*I-γ*I]
u0 = [S => 990.0, I => 10.0]
p = [β => 0.5, γ => 0.25]

Linear chain trick

Code is here

K = 4
@parameters t β δ
@variables S(t) (I(t))[1:K]
D=Differential(t)
ΣI=sum(I[1:K])
eqs=[D(S)    ~ -β*ΣI*S,
     D(I[1]) ~  β*ΣI*S-δ*I[1],
    [D(I[i]) ~  δ*I[i-1]-δ*I[i] for i in 2:K]...]

An age-structured PDE

Dt = Differential(t)
Da = Differential(a)
∫a = Integral(a in ClosedInterval(0,A))
[Dt(S(a,t))+Da(S(a,t)) ~ -β*S(a,t)*∫a(I(a,t)),
 Dt(I(a,t))+Da(I(a,t)) ~  β*S(a,t)*∫a(I(a,t))
                         -γ*I(a,t)]

Composability

Another way to make complex models easier to understand is to compose them from smaller submodels
Causal approaches: Outputs from one model are linked to inputs of another
- Volz coalescent models
- Mick Roberts’ ODE/map
Acausal: Inputs and outputs can be linked between models birectionally
- Identify shared states between submodels

An algebraic petri net

becomes

Code is here

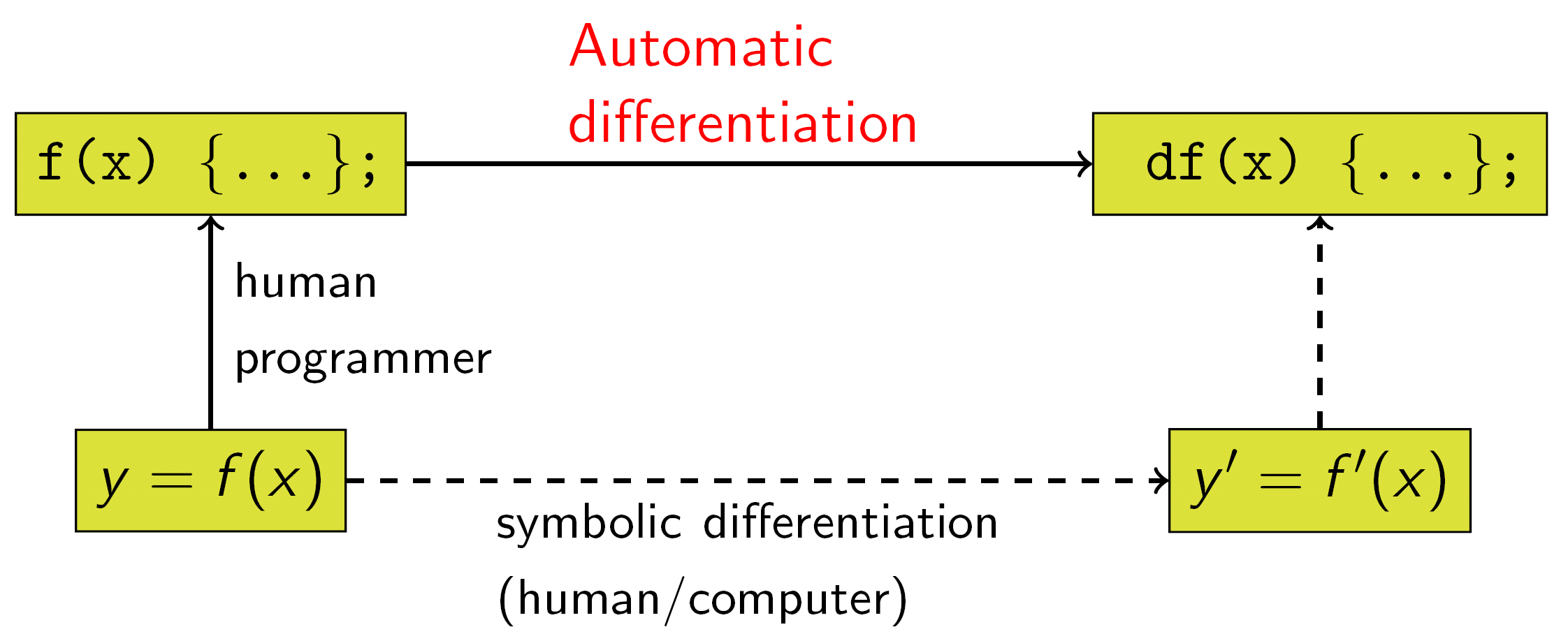

Using frameworks with automatic differentiation

Forward AD: Replace numbers \(x\) with dual numbers \(x + x' \epsilon\)

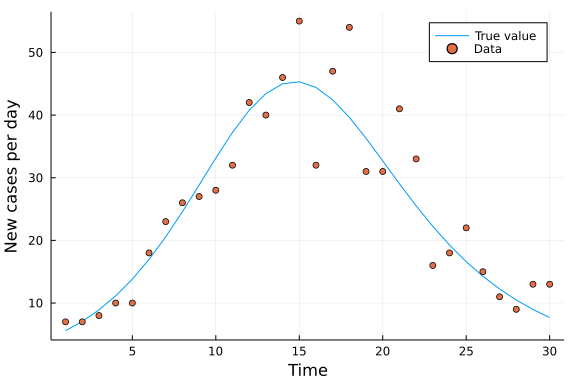

Simulated SIR model

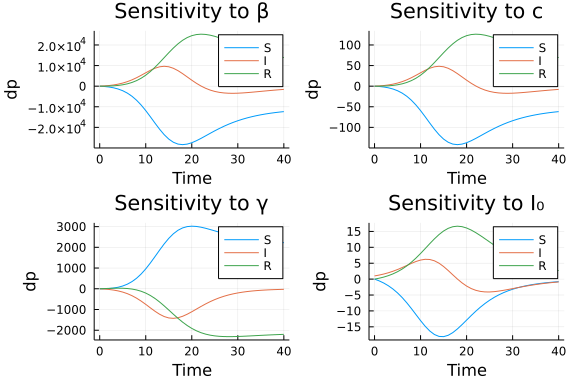

Local sensitivity

AD allows us to examine the sensitivity of trajectories to changes in parameters (code here)

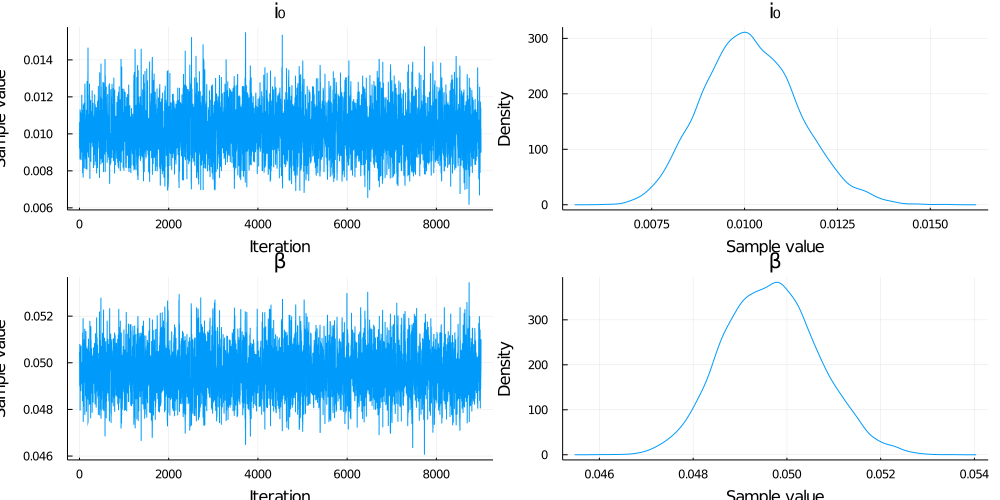

HMC/No U-Turn Sampler

We can also use efficient MCMC samplers such as NUTS if we have gradients via AD (code here)

Neural networks

Model neural network platforms rely on automatic differentiation
Neural networks have found their way into the differential equation space and vice versa
- Using differential equations to create infinitely-deep neural networks
- Learn the differential operator
- To build semiparametric models
‘Learn’ the force of infection without making e.g. mass action assumptions

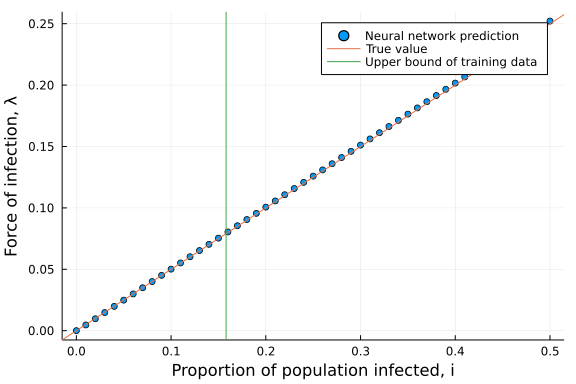

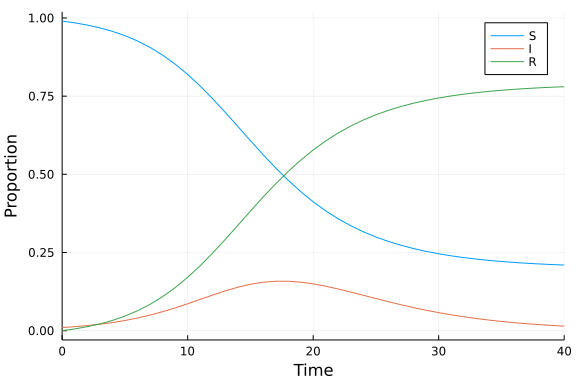

Learning the force of infection

Replace \(\lambda(t) = \beta I(t)\) with \(\lambda(t) = f(I(t))\) where f is a neural network.
Multiple advantages with replacing state-dependent terms rather than time-dependent terms (code here)

Using other peoples models

In many cases, models may be too much work to re-implement
- We can still compose models using a causal approach
At the very least, we should be able to reproduce the results of a model if we have the code
To make models useful, we need to be able to run the models e.g. with different parameter sets

Making models reproducible

Papers often omit details of the model, but even if they include all the equations, there can be problems

\[ \begin{align*} \dfrac{\mathrm dS}{\mathrm dt} &= -\frac{\beta c S I}{N}, \\ \dfrac{\mathrm dI}{\mathrm dt} &= \frac{\beta c S I}{N} - \gamma I,\\ \dfrac{\mathrm dR}{\mathrm dt} &= \gamma I, \\ S(t) + I(t) + R(t) &= N \\ S(0) = 990, I(0) = 10, R(0) &= 0 \\ \beta=0.05, c=10, \gamma &= 0.25 \end{align*} \]

Why is this not enough for numerical work?

What numerical precision was used?
Which solver was used?
These problems are even more acute with more complex models
- PDEs: which numerical scheme?
- Agent based models

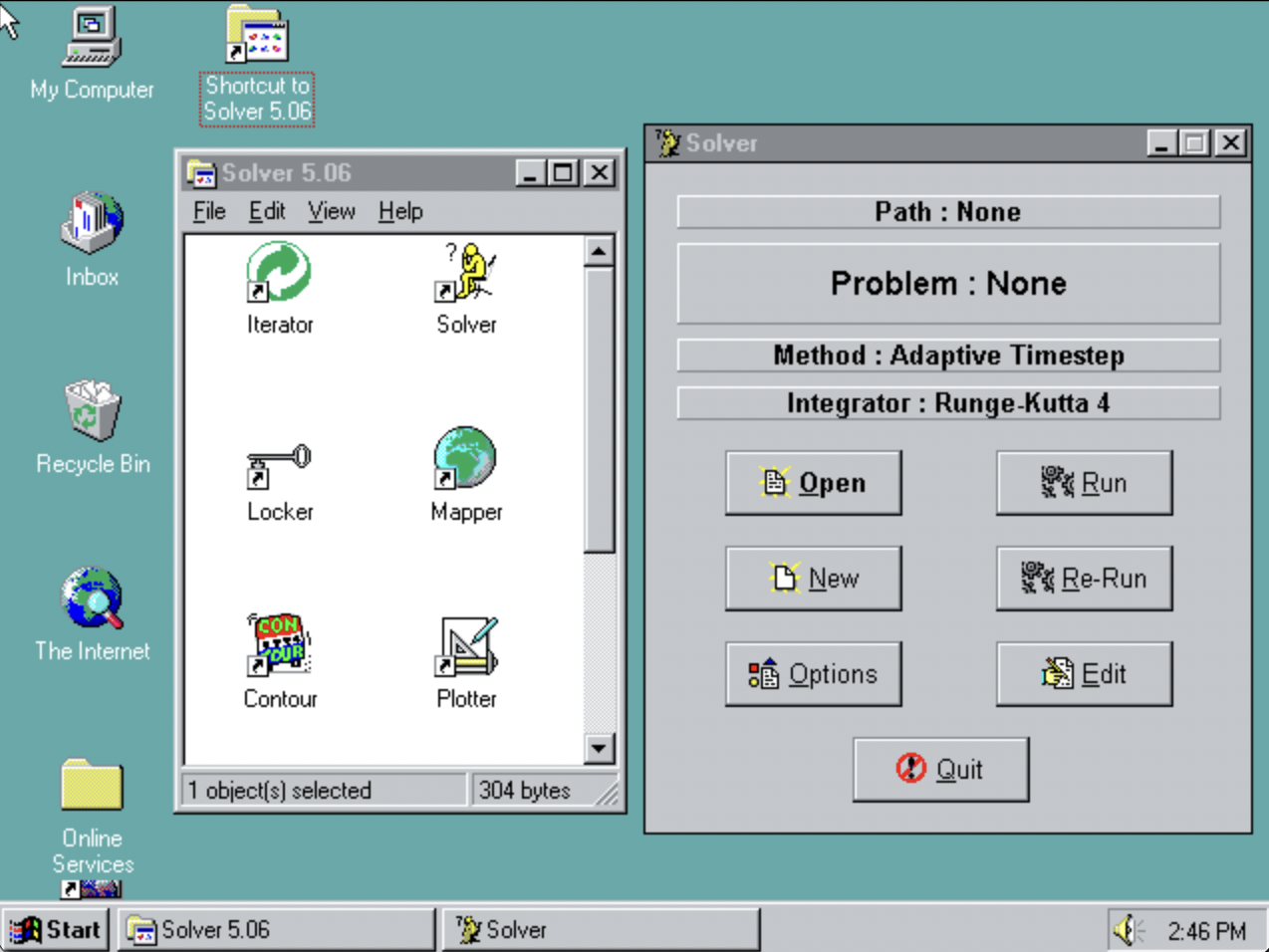

The importance of preservation

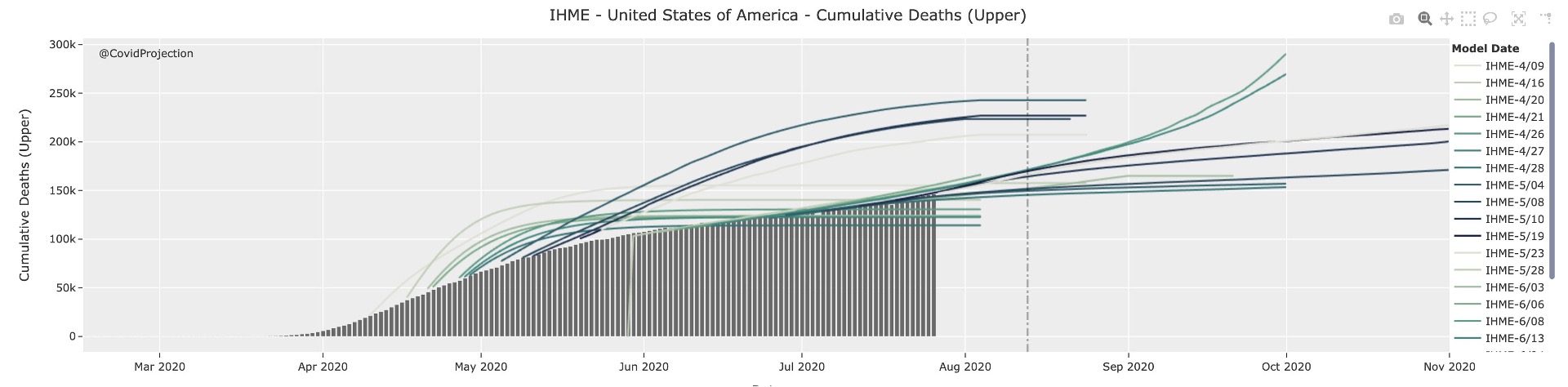

The importance of versioning

Packaging the models in ‘containers’

A container is like a lightweight ‘virtual machine’
You can bundle all the code and dependencies (and even data) that a model needs to run
- Portable(ish)
- Reproducible
- Versioned
- Makes it easier to run models remotely
‘Full’ packaging can be difficult when commercial packages (Matlab, Mathematica, Maple, etc.) are used

An example Dockerfile

FROM python:3

ARG COVASIM_VER=1.0.0

RUN pip install covasim==${COVASIM_VER} pandas

COPY . /app

CMD ["python", "/app/runsim.py", "/data/input/inputFile.json", "/data/output/data.json"]

Running the models

JSON (Javascript Object Notation) is an open standard file format, and data interchange format, that uses human-readable text
Schema can be used to validate
Goal: Models can be run as:

my_model input.json output.json

An example input

An array of parameter values, p, an array of initial conditions, u0, and a timespan over which to simulate

 {
    "p" : [0.05,10.0,0.25],
    "u0" : [990.0,10.0,0.0],
    "tspan" : [0.0,40.0]
}

A better input

 {
    "p" : {"b": 0.05, "c": 10.0, "g": 0.25},
    "u0" : {"S": 990.0, "I": 10.0, "R": 0.0},
    "tspan" : {"tmin", 0.0, "tmax": 40.0, "dt": 0.1}
}

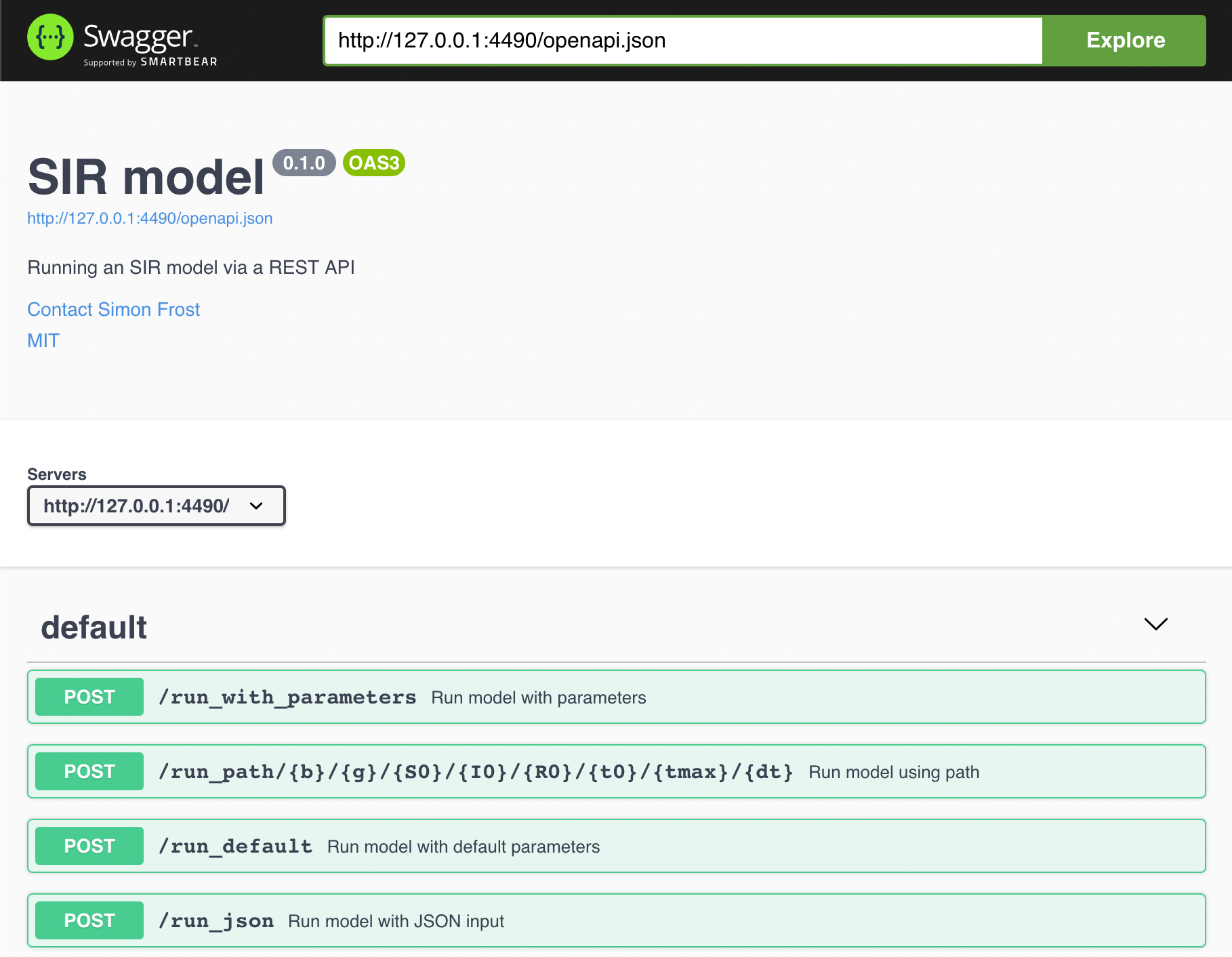

Making application programming interfaces (APIs) to models

Use default parameters (can use multiple endpoints for different scenarios):
- "/run_default"
Using a path:
- "/run_path/{b}/{g}/{S0}/{I0}/{R0}/{t0}/{tmax}/{dt}"
Using JSON formatted data
Modern tools allow you to add interfaces to your models with as little as 1-2 extra lines of code

Webpage input

Model runner examples are here

How do these open science approaches make models more useful?

Models are often developed in isolation
- from the data
- from those who may use the models e.g. in decision making
Approach
- Provide a cloud compute platform to run models
- Provide a data platform to assist epidemiological models
- Work with stakeholders to build useful dashboards

Model runner background

Engineers at GitHub and Microsoft helped to open-source the code for Neil Ferguson’s covidsim
Involved code review by John Cormack (founder Id Software, former CTO of Oculus)
Refactored the code, containerized it, allowing it to be run in the cloud (Microsoft Azure)
In parallel, engineers at GitHub developed a model runner and a front-end to run multiple COVID models
- covidsim, covasim (IDM), covid19-scenarios (Richard Neher), MC19 (Stripe/Harvard)

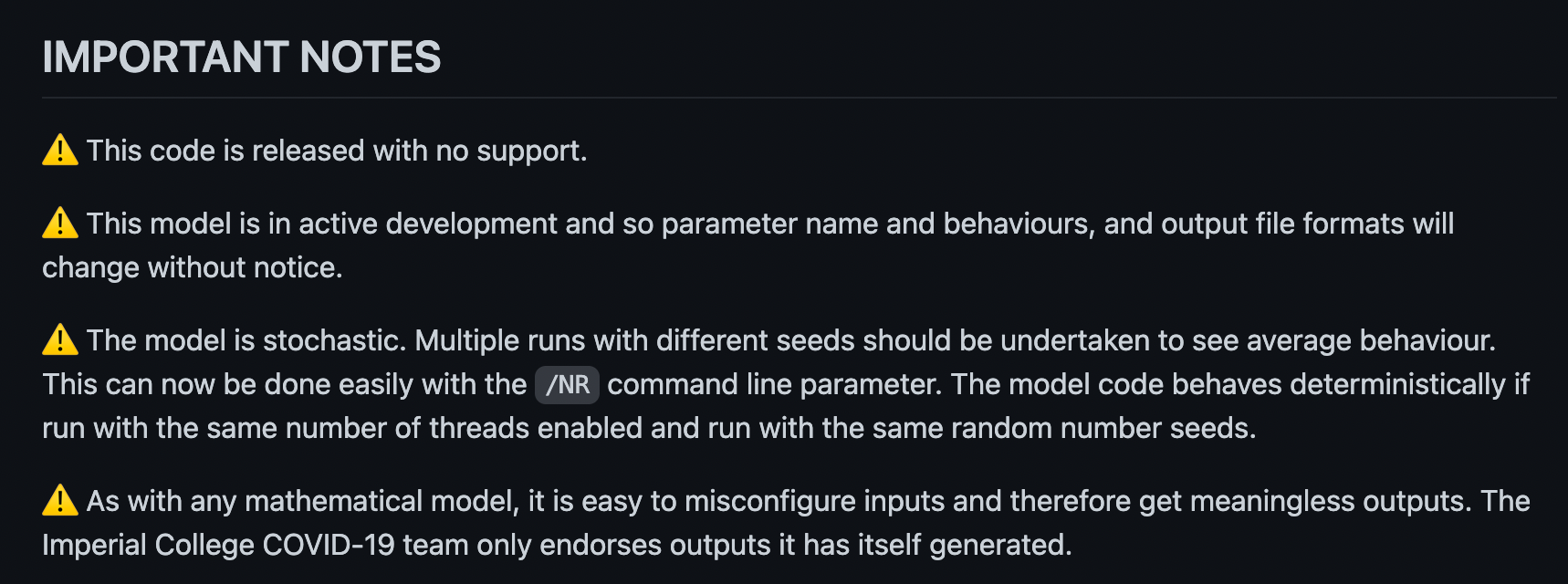

Imperial’s Covidsim

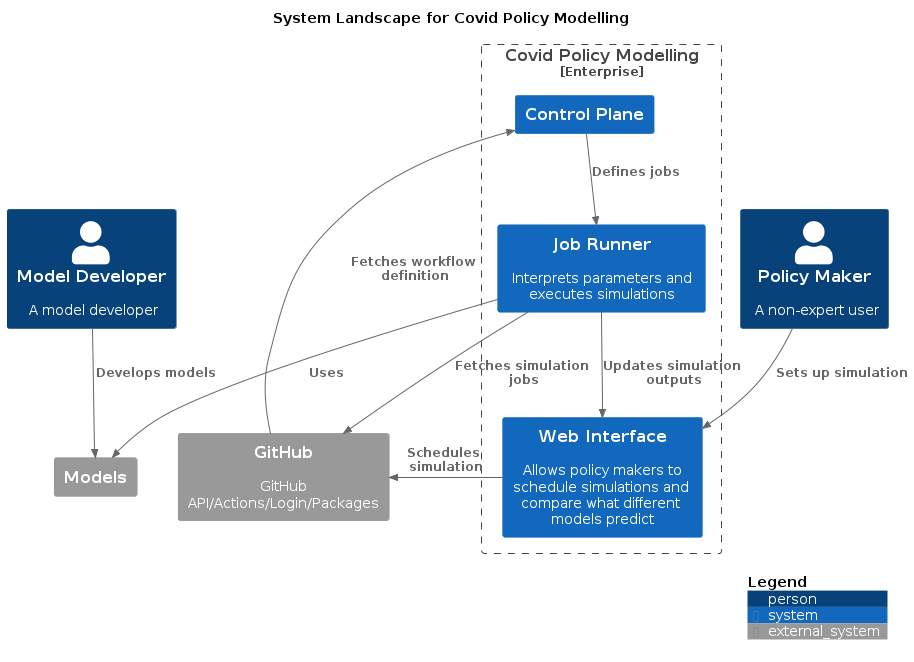

Model runner architecture

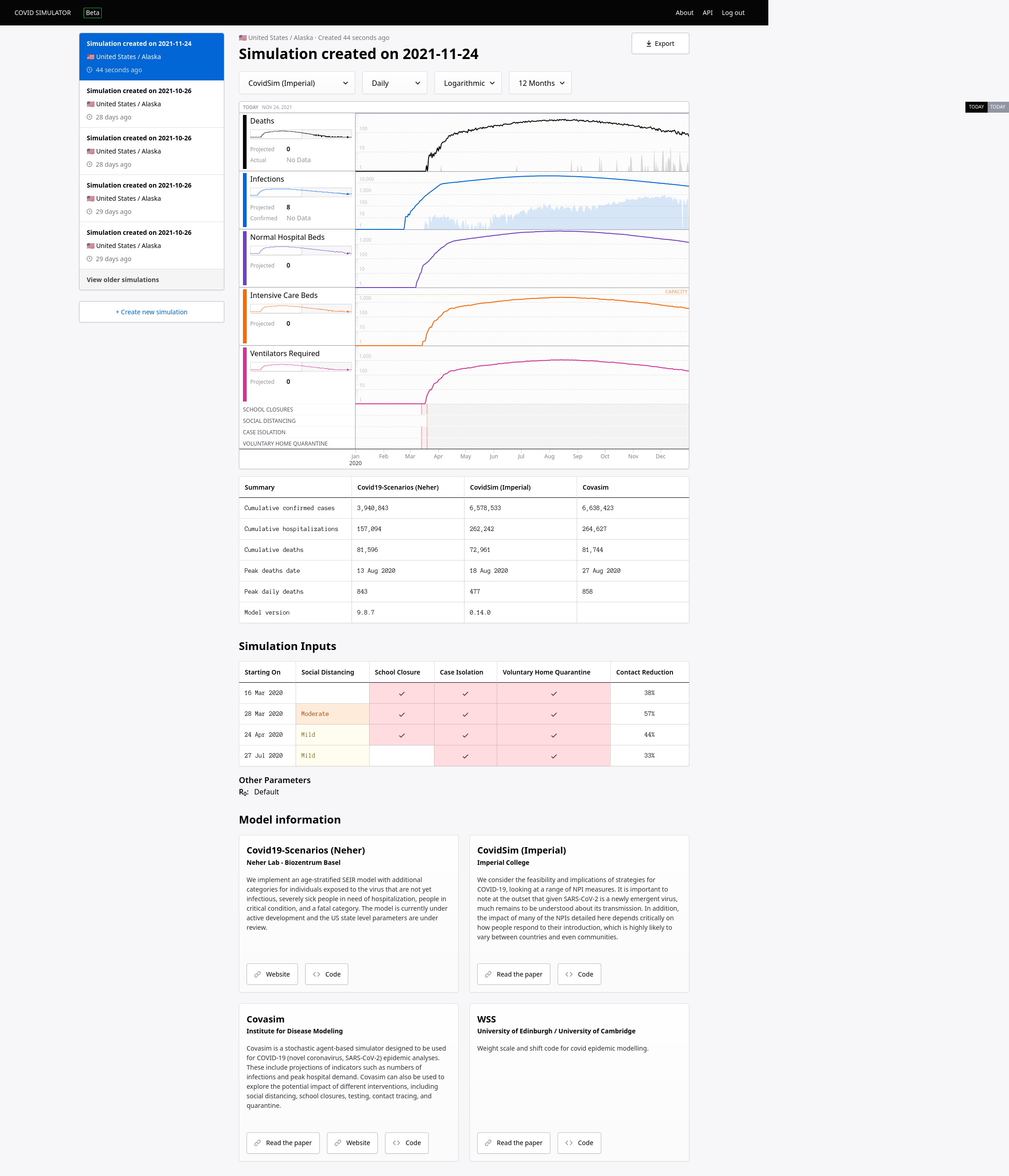

Front end

Issues

Models didn’t have an existing web API, so connectors had to be built
Models may have little overlap in inputs and/or outputs
Development shifted to just making a web API to schedule and retrieve model runs

The Sentinel Project

Project that brings together modellers in the UK with the Nigerian CDC and ACEGID
Can we support decisions on Lassa fever surveillance through automated running of models on epidemiological data?
What is the value of viral sequence information?
How can we streamline data collection so that it is more accurate and complete?

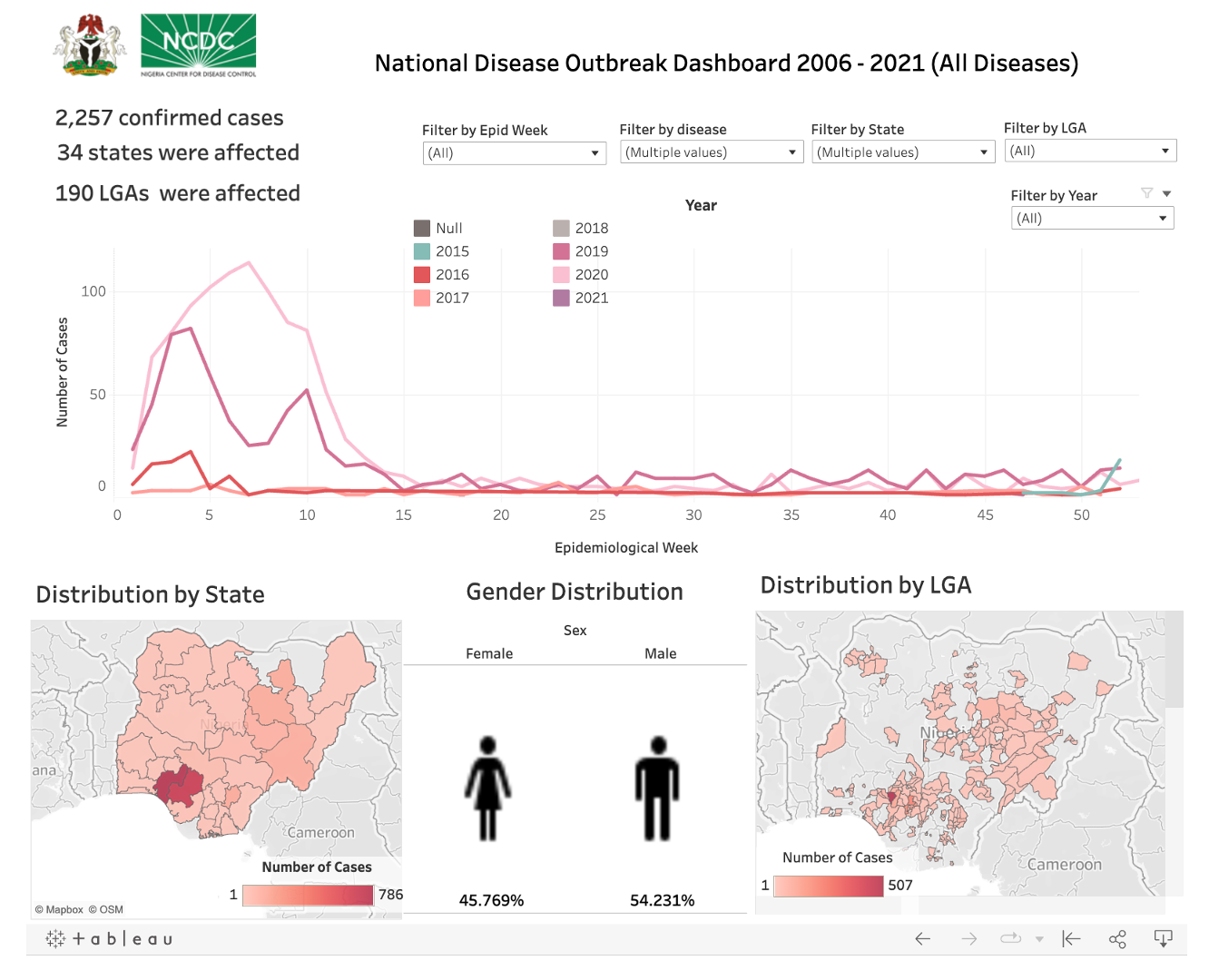

Lassa fever in Nigeria

Forecasting Lassa fever in Nigeria

We’ve packaged the statistical model from Redding et al. (2021)
Spatiotemporal model implemented using R-INLA
- Outcome: number of cases offset by population size
- Predictors:
  - RW1 on year
  - Cyclic RW2 on week
  - RW2 on SPI (lagged by 120d)
  - RW2 on precipitation (lagged by 60d)
  - Spatial autocorrelation

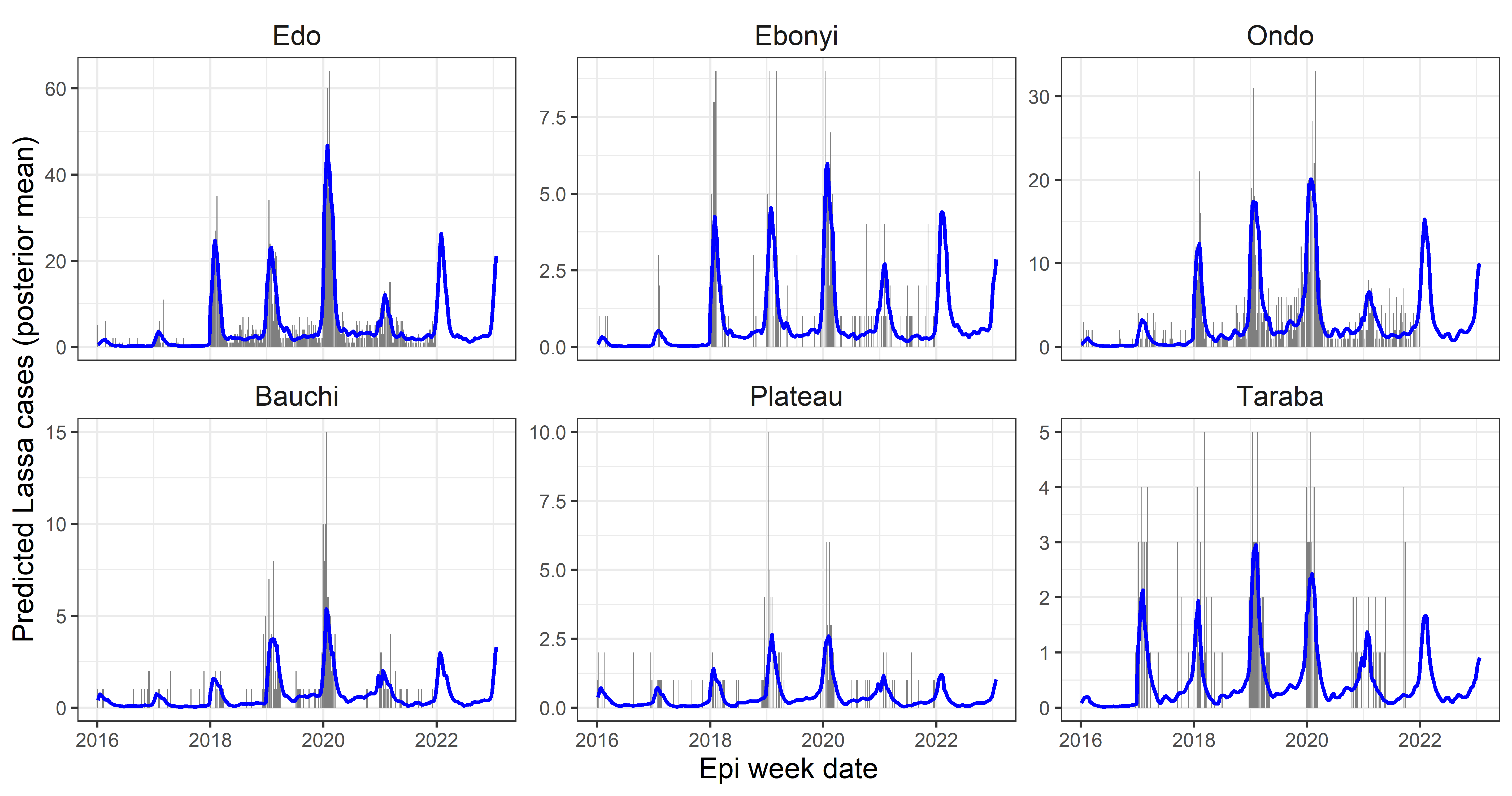

Forecasts

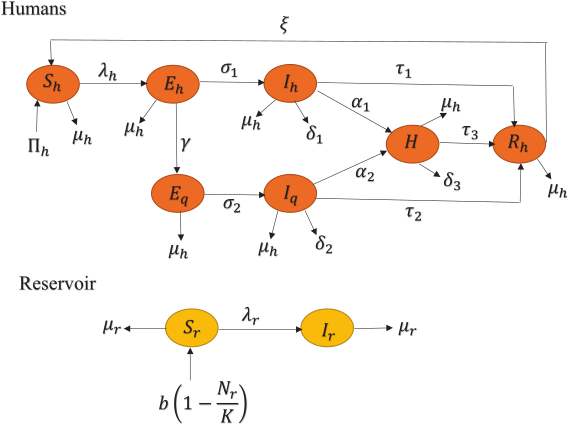

Musa et al. (2020) Lassa fever model

Fitted force of infections

Next steps

What information is useful to the Nigerian CDC?
How can sensitivity analysis be done interactively?
How can we extend to other diseases?

The Computing the Biome project

Public-private partnership funded by the NSF to study how real-time vector surveillance using Microsoft Premonition devices can empower vector control of West Nile virus in Harris County, Texas
- Integrate existing data with public datasets
- Generate sequence data from mosquito samples
- Add real time mosquito data and weather data
- Build models
- Feed results back to interested parties

Where to put our devices?

Treating our traps as a limited resource, where should we place our devices?
Developing adaptive sampling protocols in order to guide the logistics of moving traps around
Very outcome-dependent
For Harris County, we have historical data going back to 2006 on weekly trapping counts and West Nile Virus results on pooled mosquitoes
- Provide short term forecasts using data-driven models
- Long term scenarios/projections using mechanistic models

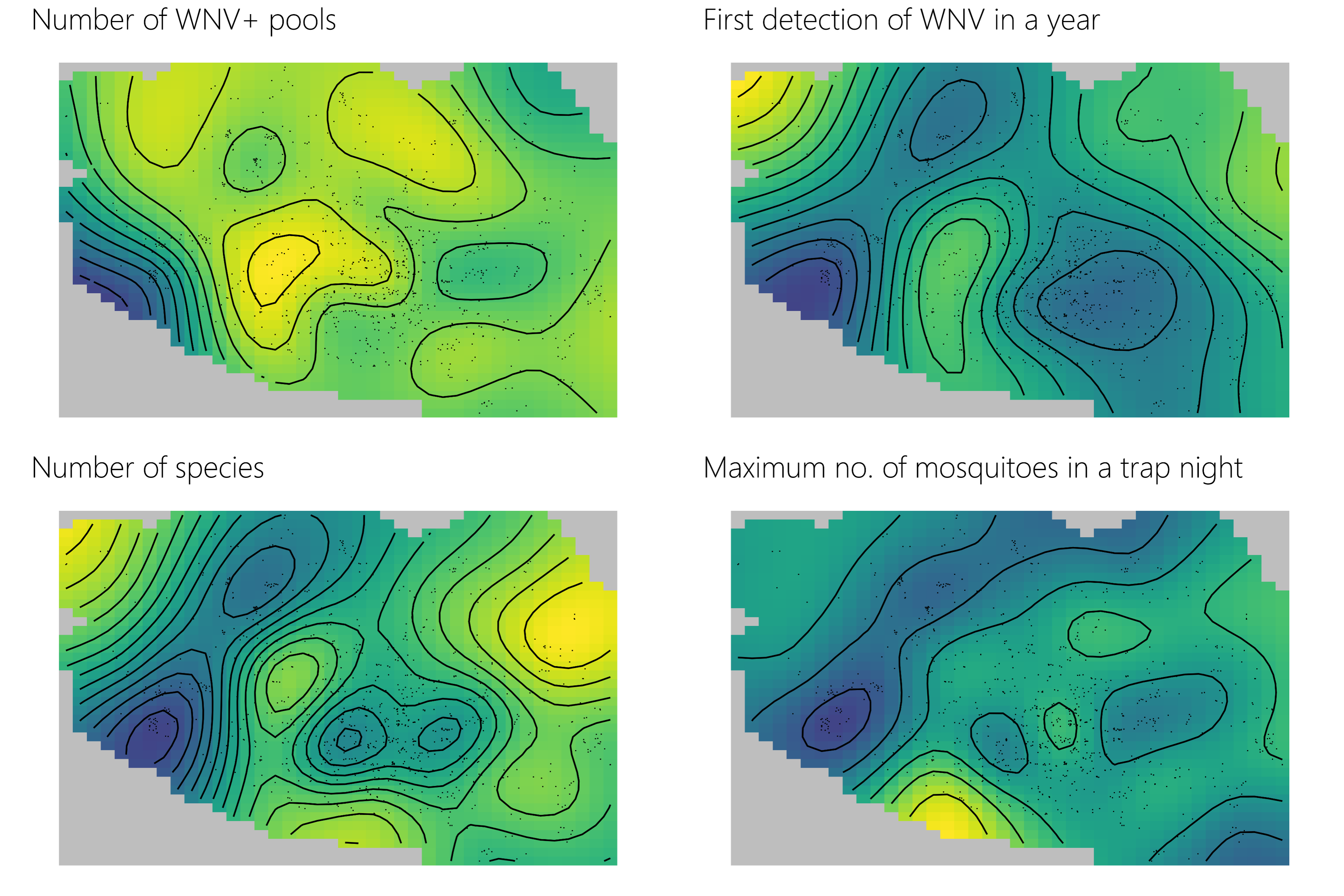

Spatial patterns in Harris County

An exemplar data ecosystem

As part of the Computing the Biome project, we will provide a snapshot of our data lake
- Mosquito and vector control data (from Harris County Public Health)
- High-resolution climate data (from Tomorrow.io)
- Data from our biological weather stations (from MSFT)
- Integrated with other public datasets
  - Human population data
  - Social vulnerability data
  - Land use data
  - LIDAR data

Models

We’re working with David Smith and Sean Wu (UW IHME) to integrate their models into our architecture
MicroMoB
- Discrete time, deterministic or stochastic model for mosquito density and vector-borne disease
exDE
- Continuous time, differential equation based framework for mosquito density and vector-borne disease
MBITES
- Individual-based model for patterns of daily activity

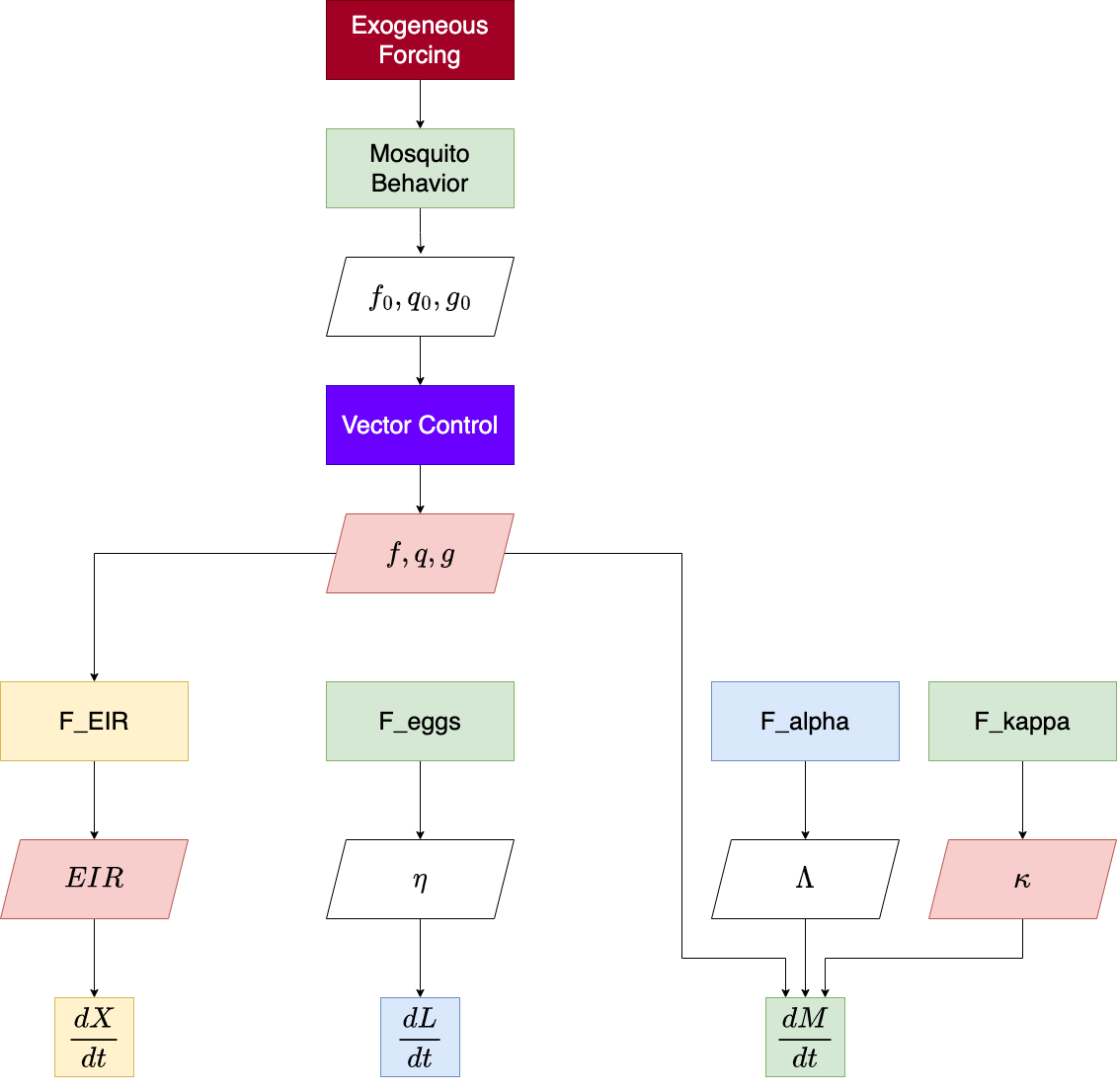

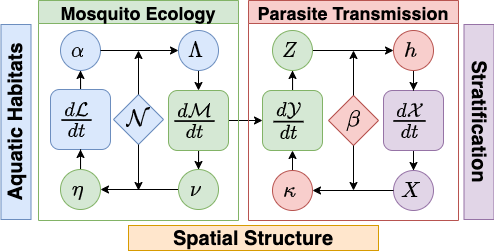

exDE framework

Linking vector control and weather to mosquito models

Finding models

I’ve spoken about Accessibility, Interoperability, and Reproducibility
- What about Findability?
Implementations that are hard to find
- Age of infection models
- Age structured models
- Size structured models

Epirecipes

Started when I was a Turing Fellow at The Alan Turing Institute
Aims:
- Code as many models and techniques in as many computer languages as possible
- Provide a zero-install way to try out these models
Current development
- Illustrate as many techniques applied to a simple SIR type system
- Coded primarily in Julia

Demos include…

Different frameworks:
- ODEs, DDEs, SDEs, jump processes, maps, Markov models, agent based models, discrete event simulations
Inference (mostly for ODEs)
- MCMC, nested sampling, ML through optimization, ABC
Composition
Surrogate models
Uncertainty quantification
Miscellaneous
- Adomian polynomials, fractional differential equations

Things that help promote model re-use

Think about modeling in terms of processes rather than states
Simplify the model description using domain specific languages
Make the model composable so the model building process is evident
Provide parameter ranges and default scenarios
Package the model with self-documenting inputs and outputs

Conclusions

I’ve tried to promote an open science approach to numerical methods in epidemiological modeling
Potential benefits
- Citations! Fame!
- Others can verify and build on your work
- Development of data and compute platforms that may help your models
Modern computational tools lessen the burden of adopting these practices
Let me know if you want a reference implementation of your approach

Open science approaches to the mathematical modeling of infectious disease

Simon Frost

Principal Data Scientist, Microsoft &

Professor of Pathogen Dynamics, LSHTM

sdwfrost@microsoft.com @sdwfrost http://github.com/sdwfrost

Introduction

Modeling applications

Issues with using models

FAIR principles of open science

Formulating models

Processes, not states

Stochastic petri net

ODEs and jump processes

Moment closure

Finite state projection of the master equation

Retrofitting models with phylodynamics

Expanding the state space

State expansion in phylodynamic models

Counting infections

Degree distribution is geometric

Dealing with increased complexity

Using DSLs

Linear chain trick

An age-structured PDE

Composability

An algebraic petri net

Using frameworks with automatic differentiation

Simulated SIR model

Local sensitivity

HMC/No U-Turn Sampler

Neural networks

Learning the force of infection

Using other peoples models

Making models reproducible

Why is this not enough for numerical work?

The importance of preservation

The importance of versioning

Packaging the models in ‘containers’

An example Dockerfile

Running the models

An example input

A better input

Making application programming interfaces (APIs) to models

Webpage input

How do these open science approaches make models more useful?

Model runner background

Imperial’s Covidsim

Model runner architecture

Front end

Issues

The Sentinel Project

Lassa fever in Nigeria

Forecasting Lassa fever in Nigeria

Forecasts

Musa et al. (2020) Lassa fever model

Fitted force of infections

Next steps

The Computing the Biome project

Where to put our devices?

Spatial patterns in Harris County

An exemplar data ecosystem

Models

exDE framework

Linking vector control and weather to mosquito models

Finding models

Epirecipes

Demos include…

Things that help promote model re-use

Conclusions

Links

Thanks!

sdwfrost@microsoft.com @sdwfrost http://github.com/sdwfrost
